kev sib piv ntawm cov khoom parameter
| Input voltage (V) | AC 85-265V / AC 175-265V | Txhawb Dimmer | Yeem, customizable |
| Kev ntsuas IP | IP45/65 |
Lub teeb Source |
LED |
| Lub teeb Luminous Efficiency (lm / w) | 100-190 | Lifespan (teev) | 50000 |
| Xim kub (CCT) | 3000/4000/6000K | Xim Rendering Index (Ra) | 80/95 |
| Warranty (Xyoo) | 2/3/5 | Feature | Yooj yim Installation |
| Teeb pom kev daws teeb meem kev pabcuam | Teeb pom kev zoo thiab Circuitry Design | Daim ntawv thov | Warehouse, Office, Residential, Lwm yam |
| Qhov Chaw Keeb Kwm | Guangdong, Suav teb | Hom Lub Npe | OEM |
| Beam kaum sab xis (degree) | 30/60/90/120 | Dimension | LR-IR-100W-LHB |
| Lub teeb Luminous Flux (lm) | 12000 | Khoom hnyav (kg) | 5 |
| Hom | LR-IR-100W-LHB | Hwj chim | 100W/150W/200W/300W |
Lub teeb Source & Luminous Efficiency
Lub teeb Source

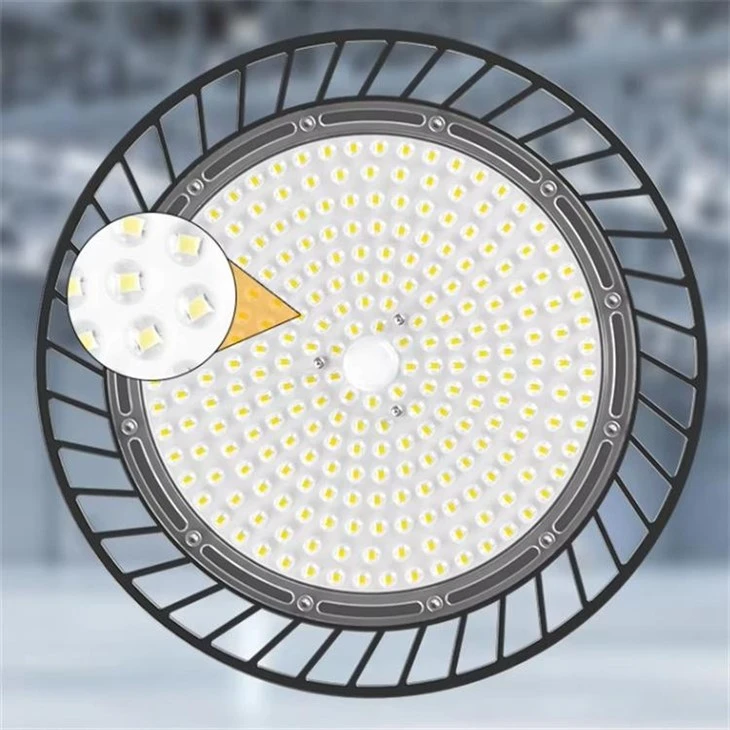

Nruab nrog siab -qib SMD2835/3030 ultra- cov chips LED ua haujlwm zoo, ua kom zoo nkauj ntawm cov thermal conductivity aluminium PCB substrate. Txhua LED hlaws yog nruj me ntsis soj ntsuam rau lub teeb pom kev tsis zoo, tsis tshua muaj thermal tsis kam thiab ruaj khov lumen tso zis; matched nrog siab -transmittance anti-UV polycarbonate annular optical lens, lub lens ua tiav cov facula faib nrog xoom macular duab ntxoov ntxoo, qhov chaw tsaus nti lossis tsis sib xws. Lub annular thib ob kho qhov muag tsim flexibly tswj beam kaum sab xis (60℃/ 90℃/ 120℃xaiv tau raws li qhov xav tau), preccentrating lub teeb rau lub hom phiaj ua hauj lwm nto yam tsis muaj stray lub teeb pov tseg.
Luminous Efficiency
Boasts kev lag luam- ua luminous efficiency mus txog130-150LM / W, deb tshaj cov pa HID / halogen rhiav teeb. Piv nrog rau cov teeb pom kev lag luam tsis tu ncua, nws tsim cov teeb pom kev zoo tib yam lossis ntau dua qhov ci ntsa iab nrog kev siv hluav taws xob tsawg dua; lumen txij nkawm tus nqi khaws cia ntau tshaj 92% tom qab 50000hrs rated lifespan, tsis tshua muaj luminous depreciation kom ntseeg tau tias teeb pom kev zoo nyob rau hauv ntev -lub sij hawm ua hauj lwm tas mus li.
Kev Siv Hluav Taws Xob & Kev Siv Hluav Taws Xob
Power Supply Configuration
Haum nrog tsim- hauv cov ntawv pov thawj tas li-tam sim no cais LED tsav tsheb, txhawb nqa dav dav AC input voltage range AC85 ~ 265V, sib xws nrog thoob ntiaj teb kev lag luam daim phiaj hluav taws xob. Tus neeg tsav tsheb sib koom ua ke overvoltage, overcurrent, luv- Circuit Court thiab surge tiv thaiv modules, zoo tiv thaiv instantaneous grid voltage fluctuation thiab thunder surge cuam tshuam kom ruaj ntseg teeb pom kev zoo txuas ntxiv; cais tsim cais Circuit Court cuam tshuam, zoo heev extending tag nrho lub teeb kev pab cuam lub neej.
Kev txuag hluav taws xob & kev siv hluav taws xob
Mus txog70% ~ 80% lub zog txuag tus nqi piv rau cov tsoos hlau halide siab bay teeb. Piv txwv li, 150W UFO LED siab bay tuaj yeem hloov pauv 400W cov qauv HID siab bay teeb, txiav cov nqi hluav taws xob ntau txhua hli. Zero sov- tos lub sij hawm, instant tag nrho brightness ntawm lub hwj chim nyob rau hauv tsis muaj zog pov tseg; tsis muaj reactive fais fab poob raws li cov tsoos inductive ballast teeb, lub zog loj dua los yog sib npaug rau 0.95 los ua kom zoo dua kev siv hluav taws xob thiab txo qis kev siv hluav taws xob ntxiv los ntawm daim phiaj hluav taws xob.
Daim ntawv thov Scenario

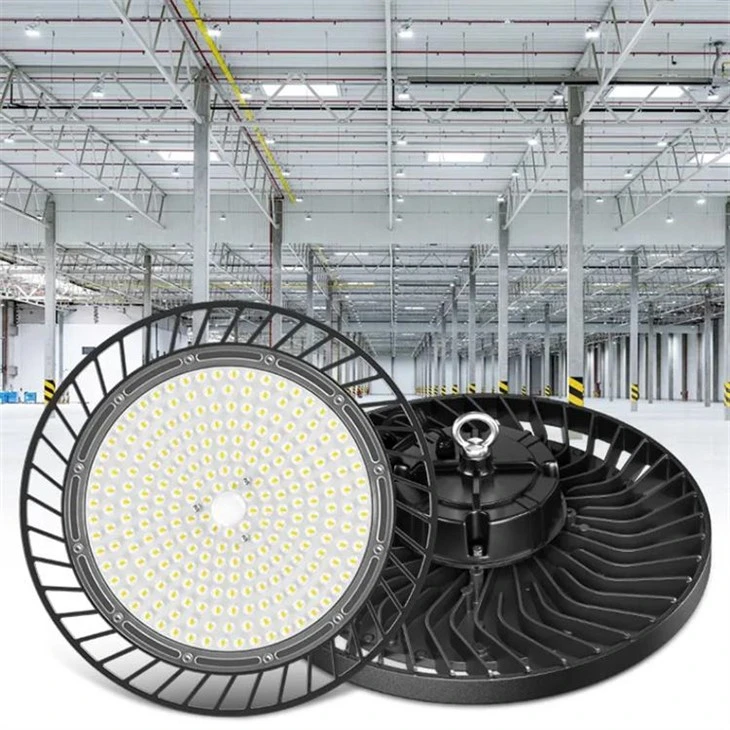

Qhov zoo tshaj plaws rau siab - qab nthab sab hauv & ib nrab- qhib teeb pom kev zoo: cov chaw tsim khoom loj & chaw ua haujlwm ntau lawm, logistics warehouses & tis centers, supermarket hypermarket high rack area, indoor sports stadium & gymnasium, exhibition halls, automobile repair garages, livestock breeds barns, large hang storage } industrial plant, & kev lag luam teeb pom kev zoo; IP45 ~ IP65 waterproof ntsuam xyuas kuj tso cai rau kev siv nyob rau hauv ib nrab- sab nraum cov chaw thau khoom chaw thau khoom thiab thaj chaw canopy.
Yuav koom tes nrog peb li cas?

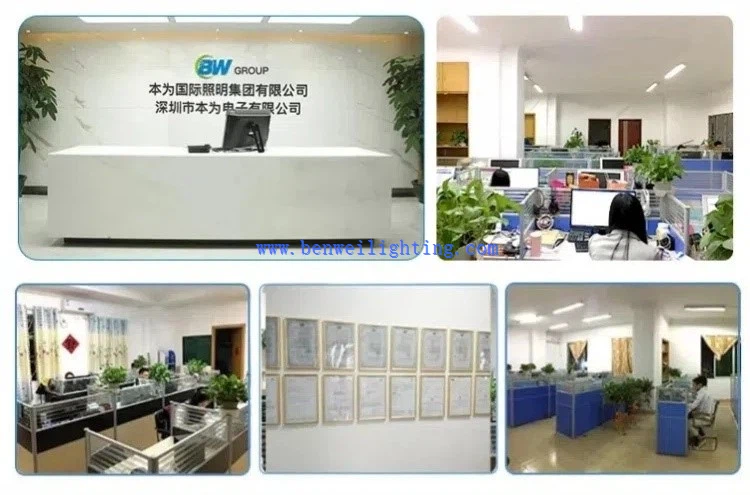

Peb lub tuam txhab txaus siab rau nws tus kheej ntawm nws tus kheej lub Hoobkas, lav kev tswj kom tiav cov txheej txheem ntau lawm thiab qhov zoo ntawm peb cov khoom. Peb tsis yog tus neeg sawv cev nkaus xwb; peb yog cov chaw tsim khoom cog lus los muab peb cov neeg siv khoom sib tw tshaj plaws. Peb caw cov neeg siv khoom los ntsuas peb cov qauv ua ntej, raws li peb tau lees paub tias qhov zoo thiab tus nqi ntawm peb cov khoom yog tus kheej - pov thawj. Peb kev mob siab rau kev ua tau zoo thiab cov neeg siv khoom txaus siab yuam kom peb ua raws li peb qhov zoo tshaj plaws thiab muab cov khoom zoo tshaj plaws.
Peb qhov chaw nyob
3rd Floor, 5th Building, Hebei Industrial Park, Hualian Community, Longhua District, Shenzhen, Suav teb
