Optimizing Athletic Performance thiab Efficiency nrog AdvancedLED FloodlightSystems rau Stadiums
Abstract
Kev hloov pauv ntawm cov teeb pom kev ua kis las kis las tau hloov pauv los ntawm tsuas yog ua tiav qhov pom kev yooj yim mus rau qhov kev tshawb fawb zoo uas cuam tshuam ncaj qha rau kev ua kis las, cov neeg saib kev paub, kev tshaj tawm zoo, thiab kev ua haujlwm ruaj khov. Ib txwm muaj siab -kev siv hluav taws xob tawm (HID), ib zaug tus qauv rau cov chaw xws lifootball chaw ntau pobthiabbasketball arenas, yog supplanted los ntawm ntseLED dej nyab teebkev daws teeb meem. Kab lus no, hauv paus hauv engineering kev txawj ntse thiab kev tshawb fawb empirical, delves mus rau hauv kev superiority, tsim- kev txiav txim siab tseem ceeb, thiab kev siv cov tswv yim niaj hnubLED chaw ua si dej nyab teebtshuab. Peb yuav tshawb nrhiav qhov tseeb ntawm kev tswj xyuas qhov muag, kev sib koom ua ke ntse, thiab kev tsom mus rau tib neeg -cov qauv teeb pom kev zoo yog rov txhais cov qauv teeb pom kev zoo rau cov chaw tshaj lij thiab cov kis las hauv zej zog zoo ib yam, ua kom muaj kev ua raws li cov cai nruj thaum muab lub zog tsis muaj zog thiab kev nplij siab.
Lub Paradigm Hloov: Vim li casLED FloodlightsSupersede Traditional HID Systems rau chaw ntau pob
Qhov kev xaiv ntawm lub teeb pom kev siv thev naus laus zis tsim lub hauv paus ntawm txhua qhov chaw ua kis las lub tswv yim teeb pom kev zoo. Ib qho kev sib piv ntawm Metal Halide (MH) teeb thiab niaj hnubsiab -lub zog LED dej nyab teebnthuav tawm qhov kev txiav txim siab kom zoo dua rau yav tom ntej hla ntau qhov kev ua haujlwm vectors. Kev tshawb fawb los ntawm Huang Ridai (2020) ntawm Zhaoqing New District Sports Center qhov project qhia txog cov txiaj ntsig no. Cov sib txawv tseem ceeb muaj xws li:
Zog Efficiency & Luminous Efficacy: LED dej nyab teebua kom pom qhov lumens siab dua -ib -watt (lm/W) kev ua tau zoo. Piv txwv li, qhov tshwj xeebLED chaw ntau pob teebsiv nyob rau hauv qhov project raug suav hais tias ua tiav kev txuag hluav taws xob ntau, nrog rau qhov chaw ncaws pob lub teeb pom kev zoo lub zog ncav cuag tsuas yog 0.0387 W / lx / m² tiv thaiv tus nqi ntawm 0.0421 W / lx / m². Qhov no txhais ncaj qha rau kev siv hluav taws xob qis thiab cov nqi ua haujlwm.
Instant On / Off & Dimming Peev Xwm:Tsis zoo li HID teeb uas yuav tsum tau ua kom sov ntev ntev - nce thiab txias - lub sijhawm qis (5-10 feeb rau kev ruaj ntseg),LED dej nyab teeb pom kev zoomuab qhov hluav taws kub sai sai thiab meej, flicker - dawb dimming. Qhov no ua rau lub teeb pom kev zoo rau cov neeg ua si nkag, kev ua koob tsheej, thiab kev tshaj tawm xov xwm, thiab tso cai rau kev thov- siv lub zog siv.
Longevity & Maintenance:Lub neej ua haujlwm ntawm qhov zooLED dej nyab teeb(feem ntau tshaj 50,000 teev rau L70) deb tshaj ntawm MH teeb (feem ntau 6,000-15,000 teev). Qhov no ua rau txo qis kev hloov pauv ntau zaus, kev saib xyuas kev ua haujlwm, thiab cov nqi cuam tshuam, yog qhov tseem ceeb rau lub teeb teeb tsa ntawm cov masts siab lossis catwalks.
Spectral Quality & Xim Rendering:AdvancedLED chaw ntau pob teeb offer superior Color Rendering Index (CRI >80) thiab tunable Correlated Color Temperature (CCT). Qhov no ua kom cov xim luam tawm raug raug rau cov neeg ua si, cov neeg ua haujlwm, thiab siab -txhais TV (HDTV) koob yees duab, txhim kho qhov pom kev pom tseeb thiab kev thov ntawm kev ua si nawv.
Kev sib piv kev ua tau zoo: Hlau Halide vs. High-Power LED chaw ntau pob Floodlights*
|
Performance Parameter |
Ib txwm Hlau Halide Floodlight |
Niaj hnub nimno High-Power LED Floodlight |
Kev cuam tshuam rau kev ua haujlwm hauv chaw ntau pob |
|---|---|---|---|
|
Qhov System Efficiency |
80 - 110 lm/W |
110 - 150+ lm/W |
Kev txo qis hauv kev siv hluav taws xob thiab cov nqi hluav taws xob ncaj qha. |
|
Pib/Re- Sijhawm tawm tsam |
5-15 feeb kom tag nrho cov zis |
Instantaneous (<1 second) |
Ua kom siv tau sai rau cov xwm txheej, xwm txheej ceev, thiab kev tswj kom muaj zog. |
|
Hom Rated Lifespan (L70) |
6, 000 - 15,000 teev |
50, 000 - 100,000 teev |
Txo tus nqi tag nrho ntawm kev ua tswv cuab (TCO) los ntawm kev txo tus txij nkawm. |
|
Controllability |
Yooj yim rau / tawm; dimming degrades lub teeb lub neej |
Tag nrho - ntau yam, ruaj khov dimming thiab zoning |
Txhawb ntau- teeb pom kev zoo (kev cob qhia, lub teb chaws vs. kev tshaj tawm thoob ntiaj teb). |
|
CRI (Tswj) |
65-85 |
80 - 95+ |
Cov xim zoo dua rau cov neeg ua si, cov neeg saib, thiab cov neeg saib TV. |
Lub luag haujlwm tseem ceeb ntawm Precise Beam Control thiab Projection Angles hauv LED Floodlight Design
Ua kom tiav qhov xav tau illuminance theem tsuas yog ib nrab ntawm kev sib ntaus sib tua. Qhov zoo ntawm lub teeb, txhais los ntawm qhov sib xws thiab qhov tsis muaj qhov ci, yog qhov tseem ceeb rau kev nyab xeeb thiab kev ua haujlwm. Ib txoj kev tshawb fawb los ntawm Sun Fubing et al. (2019) ntawm lub tsev hais plaub sab nraum zoov ntaus pob hauv Shanghai tau pom qhov muaj zog heev. Kev ntsuas pib ntawm ib qho tshiabLED dej nyab teeb kev teeb tsa tau nthuav tawm qhov tsis zoo kab rov tav tsis zoo (U_h) ntawm 0.49 thiab qhov muag tsis pom kev loj, txawm tias qhov nruab nrab illuminance txaus.
Cov kws tshawb fawb 'kev cuam tshuam tsis suav nrog ntxiv lossis txav cov khoom siv. Xwb, lawv leveragedasymmetric beam faibntawm cov uas twb muaj lawmLED dej nyab teebthiab siv DIALux simulation software los ua kom zoo dua txhua qhov kev sib twlub kaum sab xis projection-ob leeg nws qaij ( ntsug) thiab aiming (kab rov tav) kev taw qhia. Los ntawm redirecting lub "kub qhov chaw" ntawm txhua asymmetric beam rau ib tug xam cov ntsiab lus nyob rau hauv lub tsev hais plaub, lawv ua tiav ib tug zoo kawg li kev txhim kho, tsa lub uniformity mus rau 0.70 thiab txo lub Unified Glare Rating (UGR) rau hauv qab no 10. Qhov no underscores tias raukev ua si venue LED teeb pom kev zoo, qhov tseeboptical tsim ntawm qhov dej nyabthiab nws cov kaum sab xis installation yog qhov tseem ceeb raws li cov khoom siv raw khoom.
Kev cuam tshuam ntawm Optimized Projection Angles ntawm Tsev Hais Plaub Teeb Meem Metrics (Raws li Sun li al., 2019)
|
Teeb pom kev zoo Metric |
Initial Installation (Kev ntsuas) |
Tom qab Projection Angle Optimization (Simulated) |
Standard Compliance & Implication |
|---|---|---|---|
|
Kab rov tav nruab nrab Illuminance (E_h) |
240 lux |
22 9 lux |
Ua kom zoo tshaj qhov xav tau kev cob qhia amateur. |
|
Kab rov tav Uniformity (U_h) |
0.49 |
0.70 |
Ua tau raws li cov qauv tsim nyog; tshem tawm qhov txaus ntshai "pob ntseg" thiab "dub me ntsis". |
|
Glare Perception |
Mob hnyav, cuam tshuam |
UGR < 10 (Tsis yog- cuam tshuam) |
Tshem tawm cov teeb pom kev ncaj qha hauv cov kis las 'kev pom, ua kom pom kev nplij siab thiab kev nyab xeeb. |
|
Kev cuam tshuam tseem ceeb |
N/A |
Kev ua kom zoo tshaj plaws ntawm txhua qhov kho qhov qaij thiab tsom siv nws cov ntaub ntawv asymmetric photometric. |
Ua pov thawj tias cov kws tshaj lij kev npaj cov duab thaij duab yog qhov tseem ceeb, txawm tias nrog cov khoom siv ruaj khov. |
Integrating Smart Control Systems nrog LED Floodlight Arrays
Cov xwm txheej digital LED dej nyab teebsunlocks advanced tswj paradigms. Niaj hnubchaw ntau pob teeb pom kev zoo tswj systemsmus dhau qhov yooj yim on/off keyboards, enabling:
Multiscene Presets:Ua ntej- cov kev teeb tsa kev cob qhia, kev tshaj tawm hauv lub tebchaws TV, tshaj tawm thoob ntiaj teb HDTV, thiab cov xwm txheej lom zem, txhua tus muaj qhov sib txawv ntawm lub teeb pom kev zoo thiab lub hom phiaj sib xws raws li cov qauv zoo li EN 12193 thiab JGJ 153-2016.
Kev tshwm sim-Driven Automation:Kev koom ua ke nrog Tsev Tswj Xyuas Txheej Txheem (BMS) lossis cov sijhawm teem sijhawm kom tau txais kev qhib ua ntej-game, hauv-game, thiab tshaj tawm- game teeb pom kev zoo.
Kev Tswj Xyuas Zog:Dimming thaum tsis yog - ua si siab tshaj lossis rau kev cob qhia, thiab teem caij raws li kev siv tiag tiag, pab txhawb rau lub hom phiaj kev ruaj ntseg ntawm qhov chaw.
Predictive Maintenance:Cov txheej txheem Advanced tuaj yeem saib xyuas tus kheej kev ua tau zoo (tam sim no, qhov hluav taws xob, qhov kub thiab txias), ceeb toom pab pawg saib xyuas rau qhov ua tsis tiav ua ntej lawv cuam tshuam rau qhov xwm txheej.
Case nyob rau hauv Point: Siv High-PowerLED Solutionshauv Major Sporting Venues
Cov txiaj ntsig theoretical muaj txiaj ntsig tshwm sim hauv cov haujlwm loj -. Zhaoqing New District Sports Center (Huang, 2020) yog ib qho piv txwv rau kev xa tawmsiab -lub zog LED dej nyab teebnyob rau hauv cov ntsiab lus kev tshaj lij. Tus qauv tsim rau 20,000-lub rooj ncaws pob ncaws pob siv 176 units ntawm 1400WLED dej nyab teeb, hais txog keeb kwm LED teeb meem lub taub hau- ntawm:
Thermal Management:Kev siv cov tuag- nrum txhuas vaj tse thiab siv atsav tsheb- ntawm -board (DOB) sib cais tsim, qhov twg lub hwj chim tsav tsheb yog nyob deb ntawm mounted nyob rau hauv centralized txee ntawm lub catwalk. Qhov no cais cov cua sov-sensitive electronics los ntawm LED module lub thermal load, kom ntseeg tau lub neej ntev thiab ruaj khov.

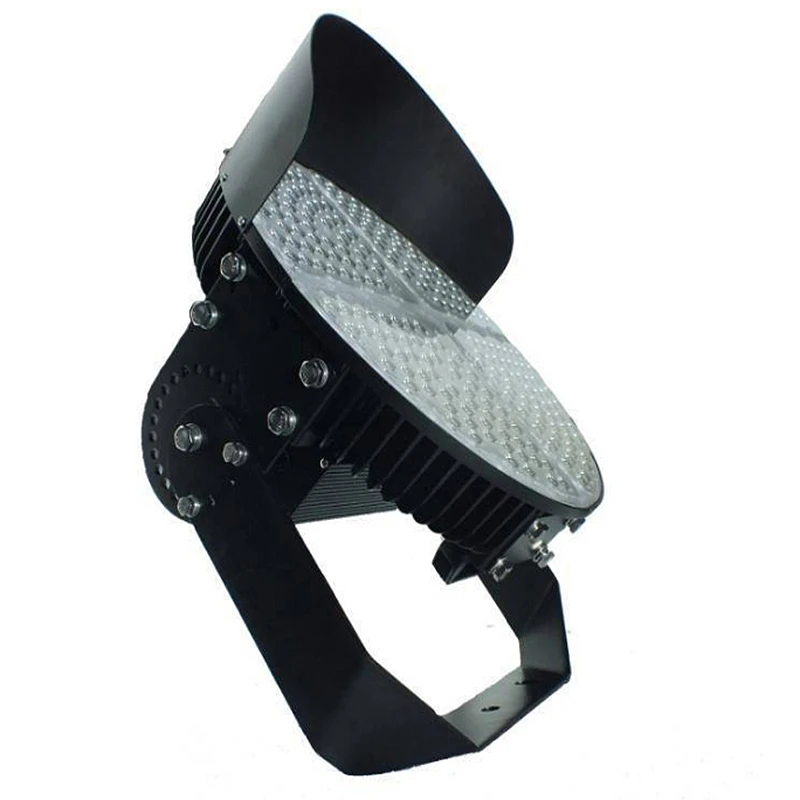

Glare Mitigation:Txhua LED nti tau haum nrog ib tus neeg thib ob optic (lens) thiab tiv thaiv -glare baffle, tswj cov teeb pom kev zoo kom txo cov txeej mus rau hauv cov chaw muag khoom thiab cov neeg ua si lub qhov muag.
Photometric Maintenance:Incorporating tas li - teeb - tso zis technology los ntawm kev tawm tswv yim tswj kom tau txais txiaj ntsig rauluminous flux depreciation (LFD)dhau lub sij hawm, guaranteeing zoo ib yam illuminance theem rau xyoo.
Kev Sib Tw Kev Lag Luam thiab Kev Tsim Kho Kev daws teeb meem rau LED Stadium Floodlights
Txawm tias lawv qhov zoo, kev sib koom ua keLED dej nyab teebrau hauv cov chaw ua kis las nthuav tawm cov kev cov nyom tshwj xeeb uas xav tau cov kev daws teeb meem tshwj xeeb.
Kev Sib Tw 1: Tswj Kev Siv Nyiaj Txiag (CapEx) Kev Pom Zoo.Thawj tus nqi yuav khoom ntawm qib kws tshaj lij- qibLED dej nyab teebtuaj yeem siab dua li cov kab ke ib txwm muaj.
Kev daws:Kev txheeb xyuas Tag Nrho Tag Nrho Cov Tswv Cuab (TCO) yuav tsum tau nthuav tawm, suav nrog 50-70% kev txuag hluav taws xob, kev saib xyuas tsawg tshaj li 10+ xyoo, thiab txo cov nqi hloov pauv. Cov ntaub ntawv tshawb fawb zoo li Zhaoqing qhia meej cov txiaj ntsig kev lag luam mus sij hawm ntev.
Kev Sib Tw 2: Ua tiav Glare- Ua Si Dawb rau Siab -Angle Sports.Hauv kev ua kis las xws li ntaus pob lossis ntaus pob, cov neeg ua si nquag saib sab saud, ncaj qha rau hauv qhov chaw teeb pom kev zoo.
Kev daws:Raws li pom los ntawm Sun et al., kev daws teeb meem nyob rau hauv cov kws tshaj lij photometric tsim. Kev siv cov khoom siv nrog asymmetric distributions thiab optimizingprojection kaumkom ntseeg tau tias qhov siab - siv qhov tseem ceeb ntawm lub nqaj yog coj mus deb ntawm cov neeg ua si cov kev pom zoo, mus rau qhov chaw ua si.
Kev Sib Tw 3: Ua kom muaj kev ua tau zoo sib xws hauv kev xav tau ib puag ncig.Cov teeb hauv chaw ntau pob ntsib kev ntxhov siab, huab cua, kev vibration, thiab xav tau cov khoom tso tawm zoo ib yam rau kev tshaj tawm.

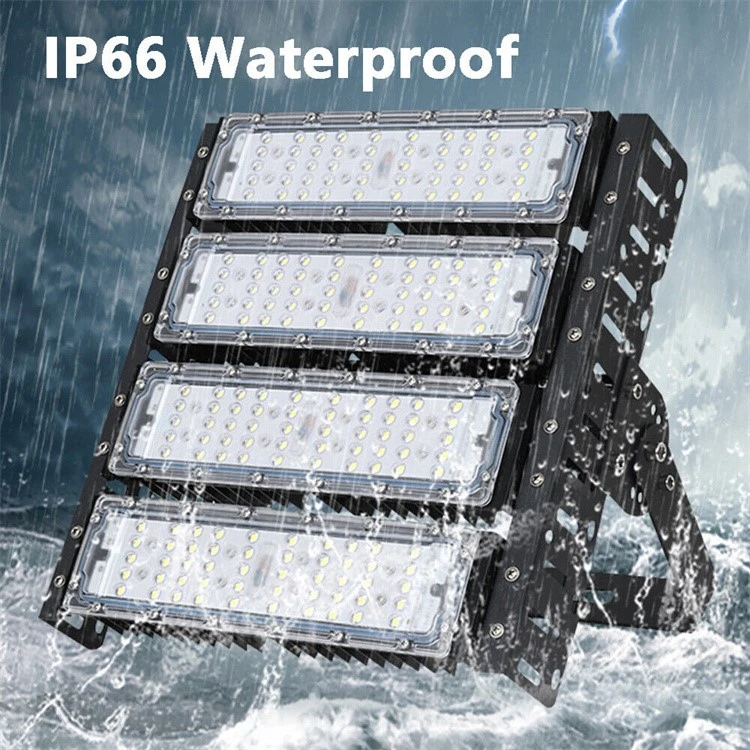

Kev daws:Qhia cov khoom siv nrog kev tiv thaiv kev tiv thaiv zoo (IP65 rated lossis siab dua), corrosion- cov ntaub ntawv tiv taus, thiab kev tswj xyuas thermal siab heev (xws li cov tsav tsheb nyob deb). Siv cov tshuab nrog photometric tu nta los tawm tsam LFD tau.
Kev Sib Tw 4: Lub Rooj Sib Tham Evolving Broadcast Standards (4K/8K HDR).Kev tshaj tawm tshiab thev naus laus zis xav tau ntau dua ntsug illuminance, huab sib xws, thiab kev ntsuas xim tshwj xeeb.
Kev daws:Tsim cov phiaj xwm teeb pom kev zoo los ntawm qhov pib ua kom tau raws li qib siab tshaj plaws ntawm cov qauv tshaj tawm (xws li UEFA CATEGORY 4, FIFA QUALITY PRO). SivLED dej nyab teebnrog CRI siab (90+), CCT tswj tau meej, thiab xyuas kom muaj qhov pom tseeb txaus ntawm cov neeg ua si ntsej muag thiab txav mus los.
Xaus: Lub neej yav tom ntej yog Precision LED teeb pom kev zoo
Kev hloov mus rauntse LED Floodlight systemssawv cev rau kev txhim kho tseem ceeb rau kev ua kis las infrastructure. Nws txav dhau qhov teeb pom kev yooj yim kom dhau los ua qhov muaj zog, ua tau zoo, thiab ua haujlwm tau zoo- txhim kho cov khoom muaj nqis. Kev sib koom ua ke ntawm kev ua haujlwm siab -LED technology, precision optics rau beam thiabprojection kaum tswj, thiab kev sib txuas lus ntse tsim ib puag ncig uas cov neeg ncaws pob tuaj yeem ua tau ntawm lawv qhov siab tshaj plaws, cov tshaj tawm xov xwm ntes cov duab zoo nkauj, thiab cov neeg ua haujlwm tswj hwm cov peev txheej ruaj khov. Raws li cov qauv evolve thiab technology nce, lub luag hauj lwm ntawm lubteeb pom kev zoo designerdhau los ua qhov tseem ceeb nce ntxiv - hloov pauv cov khoom lag luam luminous rau hauv kev nyab xeeb, xis nyob, thiab lub teeb pom kev zoo rau lub ntiaj teb kev ua si.
Kev Qhia & Kev Nyeem Ntxiv
Sun, F., Wang, K., Guo, C., Li, C., Wang, F., Liu, Y., Ju, J., & Li, L. (2019). Kev cuam tshuam ntawm LED Teeb Projection Lub kaum sab xis ntawm Basketball Court teeb pom kev zoo.Zhaoming Gongcheng Xuebao (Illuminating Engineering Journal), 30(4), 149-152.
Huang, R. (2020). Daim ntawv thov High-lub hwj chim LED teeb nyob rau hauv lub chaw ntau pob teeb pom kev zoo.Zhaoming Gongcheng Xuebao (Illuminating Engineering Journal), 31(1), 83-86.
* Cov khoom siv ua kis las thiab thaj chaw teeb pom kev zoo - Ntu 2-5: Cov kev cai tshwj xeeb - Cov teeb pom kev zoo rau cov chaw ua si ntau yam * (IEC 60598-2-5). International Electrotechnical Commission.
Daim ntawv thov teeb pom kev zoo - Teeb pom kev ntawm cov xwm txheej kis las(CIE 169: 2005). International Commission ntawm Illumination.
Txuj kev tsim teeb pom kev zoo ntawm cov chaw ua kis las(JGJ 153-2016). Ministry of Housing and Urban-Rural Development of the People's Republic of China.
