kev sib piv ntawm cov khoom parameter
| Hazard Classification |
Chav Kawm II, Chav Kawm Ii / Chav 2, Chav Kawm Ii / Chav 1, Chav Kawm I / Division 1, chav kawm i/division 2 |
Input voltage (V) | 100-275 |
| Lub teeb Source | LED | Kev ntsuas IP | IP65 |
| Lub teeb Luminous Efficiency (lm / w) | 110-130 | Lifespan (teev) | 50000 |
| Teeb Lub Cev Khoom | Aluminium Alloy | Xim kub (CCT) |
6000-6500K |
| Txhawb Dimmer | Yog lawm | Xim Rendering Index (Ra) | 75 |
| Warranty (Xyoo) | 3-xyoo | Teeb pom kev daws teeb meem kev pabcuam | Teeb pom kev zoo thiab Circuitry tsim, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
| Ua haujlwm kub (degree) | -40 - 50 | Qhov Chaw Keeb Kwm | Guangdong, Suav teb |
| Hom Lub Npe | BENWEI | Lub teeb Luminous Flux (lm) | 6000-39000 |

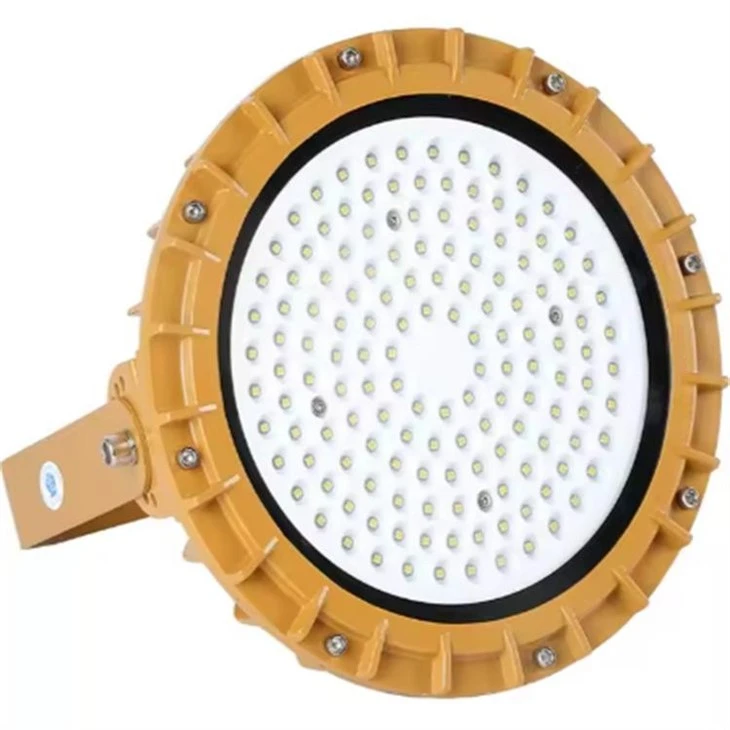

| Khoom hnyav (kg) | 12 | Khoom npe | Explosion Proof High Bay Teeb |
| Embalming | WF 2 | Lo lus tseem ceeb | Explosion Proof teeb |
| Hwj chim | 50W/70W/100W/120W/150W/200W/300W | Khoom siv | Aluminium +8mm puv tempered iav |
| Daim ntawv pov thawj | CE CCC | Lub teeb Luminous Efficiency (lm / w) | 110-130 hli / w |
Lub teeb Source & Luminous Performance
Configuration ntawm hwm SMD LED Teeb Qhov Chaw
Txhua LED hlaws yog cais nyob rau hauv concave khob-zoo li tus lens kab noj hniav nyob rau hauv lub siab thermal conductivity aluminium PCB substrate, siv hwm kev lag luam- txheem SMD LED chips ua lub teeb tseem ceeb -emitting Cheebtsam. Lub concave reflecting khob ua tiav qhov nruab nrab ntawm qhov nruab nrab thiab cov kab teeb pom kev zoo uas tsis muaj qhov tsaus ntuj lossis teeb pom kev tsis sib xws los ntawm kev ua kom lub teeb pom kev zoo thiab tshem tawm cov teeb pom kev tsis zoo thiab lub teeb poob. High colour rendering index (CRI 80), spectral kev ua tau zoo, tsis tu ncua lub teeb dawb dawb tso tawm, tshwj xeeb ntev - lub sij hawm lumen txij nkawm, thiab xim zoo sib xws ntawm tag nrho lub teeb saum npoo yog tag nrho cov txiaj ntsig ntawm tag nrho cov khoom siv LED.
Superior Lighting Output thiab Luminous Efficiency
100W LED tawg- cov ntaub ntawv pov thawj muab kev ci ntsa iab piv rau 300W lub teeb hluav taws xob tawg; ultra-siab pib luminous efficiency nce mus txog 130150lm/W, ho dhau qhov tawg zoo tib yam- pov thawj HID/mercury teeb.
Tag nrho- teeb pom kev zoo ib yam, lub dav irradiation lub kaum ntse ntse, siv qhov chaw siab ntawm cov luminous flux, thiab lub teeb siv tau zoo tshaj plaws ntawm thaj chaw ua haujlwm es tsis yog lub teeb tawg tawg yog tag nrho lav los ntawm kev ua kom zoo tshaj plaws ntawm cov khoom siv ntawm LED hlaws.
Kev tswj nruj me ntsis ntev -lub sij hawm lumen lwj ua rau tsawg dua lossis sib npaug li 5% lumen depreciation tom qab 5000 teev ntawm kev ua haujlwm tas mus li thiab mus txog 50000 teev ntawm kev pabcuam lub neej rau LED teeb pom kev zoo, txo cov nuj nqis ntawm kev hloov lub teeb tsis tu ncua thiab poob qis rau cov chaw lag luam.
Power Supply Solution & Energy Consumption Advantage
Explosion-proof Isolated Split-Cavity Driver Design
txais yuav ib qho tshiab ob-kab noj hniav sib cais kev tsim kho nrog kev sib koom ua ke tsis tu ncua- tam sim no tawg- cov neeg tsav tsheb pov thawj thiab cov khoom siv hluav taws xob kaw ruaj khov thiab lub teeb pom kev hauv lub cev sib cais, tag nrho cais cov cua sov los ntawm LED qhov chaw. Los ntawm kev tiv thaiv kev sib nrig sib cuam tshuam ntawm lub zog hluav taws xob thiab lub teeb qhov chaw, qhov nruab nrab muab faib tshwj xeeb uas tsim los ntawm cov cua sov dissipation tav qauv ua rau tus neeg tsav tsheb qhov kub thiab txias thiab txhim kho lub teeb tag nrho kev ua haujlwm ruaj khov hauv kev sib tw siab - qhov kub thiab txias.
Nrog rau kev sib koom ua ke overvoltage, overcurrent, luv -circuit, thiab surge tiv thaiv circuits, kev sib txuas tas li -tam sim no tus neeg tsav tsheb sib cais LED yog tsim los nrog tus hwm tuag- nrum txhuas casing uas yog tsim los txhawb nqa overcurrent surges mus txog 3 × rated khiav hauj lwm tam sim no. Ntiaj teb no mainstream industrial AC fais fab yog txhawb los ntawm broad input voltage compatibility: AC85 ~ 265V universal wide voltage input, kiag li adaptive rau tsis ruaj tsis khov fais fab mov voltage ntawm mines, petrochemical nroj tsuag, tshuaj nroj tsuag, offshore platforms, thiab lwm yam muaj kev nyab xeeb cheeb tsam nyob rau hauv lub ntiaj teb no.
Lub zog zoo kawg nkaus -txuag & Tsawg- Fais Fab Kev Siv Khoom
Nyob rau hauv sib piv rau cov tsoos hlau halide / incandescent teeb uas yog tawg- pov thawj:
Txog li 70%–80% ntawm lub zog tuaj yeem txuag tau los ntawm kev hloov los ntawm 300W lub teeb hluav taws xob tawg mus rau 100W LED tawg-cov teeb pom kev zoo thaum tuav tib theem ntawm lub teeb. Qhov no yuav txo tau cov nqi hluav taws xob txhua hli rau kev lag luam mining thiab kev tsim khoom lag luam.
Qhov tsis tu ncua -tam sim no tsav tau lees paub tias tsis muaj hluav taws xob ntxiv pov tseg vim qhov hloov pauv ntawm qhov hluav taws xob, ua kom lub zog qis qis qis qis hauv lub xeev ua haujlwm; instant puv -ci pib yam tsis muaj preheating tos lub sij hawm; thiab tsis muaj reactive zog poob thaum pib.
Txhawm rau ntxiv txwv tsis pub siv hluav taws xob tsis raug, qhov cuam tshuam rau ntawm - tawm ntawm kev ua haujlwm ntawm qhov chaw ua haujlwm txaus ntshai yog qhov tseeb nrog xoom sov- nce poob thiab nquag pib lub zog hluav taws xob puas tsuaj.
Ntxiv rau kev txhim kho tus nqi hloov pauv
Haum nrog 8 hli thickened siab - kub resistant tempered tawg- pov thawj pem hauv ntej iav, tiv thaiv - cuam tshuam & tiv thaiv - smash muaj peev xwm ua tau raws li kev tawg thoob ntiaj teb - cov qauv pov thawj; tag nrho lub teeb vaj tsev yog tuag- nrum txhuas alloy nrog kev sib xyaw ua ke cua sov dab dej fin tsim, loj - cheeb tsam cua convection radiator accelerates tshav kub dissipation rau xauv LED luminous efficiency ntev- lub sij hawm, tau ntawv pov thawj rau Ex txaus ntshai qhov chaw thov, zoo tagnrho rau Class I & Class II explosive gas / plua plav ib puag ncig ntawm petromine roj, cov txheej txheem kev cog qoob loo thoob ntiaj teb.
