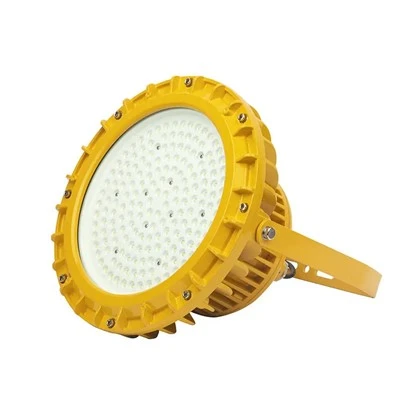

Product Description
(1) Cov cuab yeej siv hluav taws xob feem ntau yog siv, thiab cov khoom siv hluav taws xob muaj txiaj ntsig zoo siv los ua lub teeb ci. Qhov no tso cai rau tib lub sijhawm siv hluav taws xob tsawg, siv lub teeb pom kev zoo, thiab teeb pom kev nrawm.
(2) Lub teeb muaj qhov tshwj xeeb kev tsim kho uas yog ob qho tib si ncaj nraim thiab me me tab sis zoo meej rau cov cua kub diffusion (patented), ruaj ntseg txaus rau kev sib khi (waterproof thiab plua plav-pov thawj rau IP66 qauv), thiab tiv taus kev poob siab thiab corrosion. Qhov no guarantees lub teeb lub ncua kev pab cuam lub neej.
(3) Lub teeb irradiation ntau yog dav thiab lub teeb ci ntsa iab yog siab ua tsaug rau kev tsim kho qhov muag tshwj xeeb.
(4) Muaj ntau qhov kev xaiv mounting, thiab kev teeb tsa yooj yim.
Cov ntsiab lus tseem ceeb
| Cov khoom | Chav tsev | Specifications |
| Rated voltage | V | AC220 (muaj feem ntau 85 ~ 265) |
| Rated zaus | Hz | 50 (muaj feem ntau 47–63) |
| Kev siv fais fab | W | 12/14/18 |
| Lub neej | h | 50000 |
| Efficiency ntawm lub teeb | feem pua | 85 |
| Kev tiv thaiv Code | IP66 | |
| Ex. cim | ExdeIICT6 | |
| Lub zog cable | mm | Φ8~Φ10 |
| Sab nraud qhov ntev | mm | L150×W150×H153 |
| Qhov hnyav | kg | 1.5 |
Ntau cov duab:
Daim ntawv thov
Mounting thiab siv
(1) Xaiv ib txoj kev mounting thiab ib qho chaw rau lub teeb. Cov ntaub ntawv txuas ntxiv suav nrog cov duab piav qhia ntawm ntau hom mounting.
(2) Txhim khu lub teeb rau qhov chaw txuas nrog M8 bolts thiab M5 hex ciaj ntswj.
(3) Tom qab lub teeb tiav lawm, txuas lub teeb lub qaum mus rau lub cable los ntawm AC lub zog. Lub teeb yog txuas mus rau ib tug triple core cable uas yog 1.5m ntev thiab 10mm inch. Cov kab peb-core hauv lub teeb lub cable yog cim nrog cov ntawv L, N, thiab E los qhia txog cov kab nyob, nruab nrab, thiab hauv av, feem. Txhua lub xaim yuav tsum tau txuas nrog rau cov kab sib txuas hauv cov kab hluav taws xob los ntawm AC lub zog hluav taws xob.
(4) Qhib lub teeb. Instantaneously, nws yuav ci ntsa iab.
