Khoom Description
| Daim ntawv thov | Lub tsev khaws khoom | Input voltage (V) | AC200-240V |
| Tube Length (ft) | 0.6m/1.2m/1.5m | Xim kub (CCT) | 6000K (hnub ceeb toom) |
| Xim Rendering Index (Ra) | 80 | Kev ntsuas IP | IP65 |
| Lifespan (teev) | 50000 | Lub teeb Luminous Efficiency (lm / w) | 140 |
| Warranty (Xyoo) | 2 Xyoo | Qauv nab npawb | Tri-pov thawj Teeb |
| Txhawb Dimmer | Yog lawm | Khoom siv tsev | Yas Tsev |
| Teeb pom kev daws teeb meem kev pabcuam | Teeb pom kev zoo thiab Circuitry tsim, Lwm yam, qhov project installation | Khoom siv | Aluminium + PC npog |
| PF | >0.95 | Khoom npe | IP65 Tri- pov thawj Lub teeb |
| IK | 08 | Qhov Chaw Keeb Kwm | Guangdong, Suav teb |

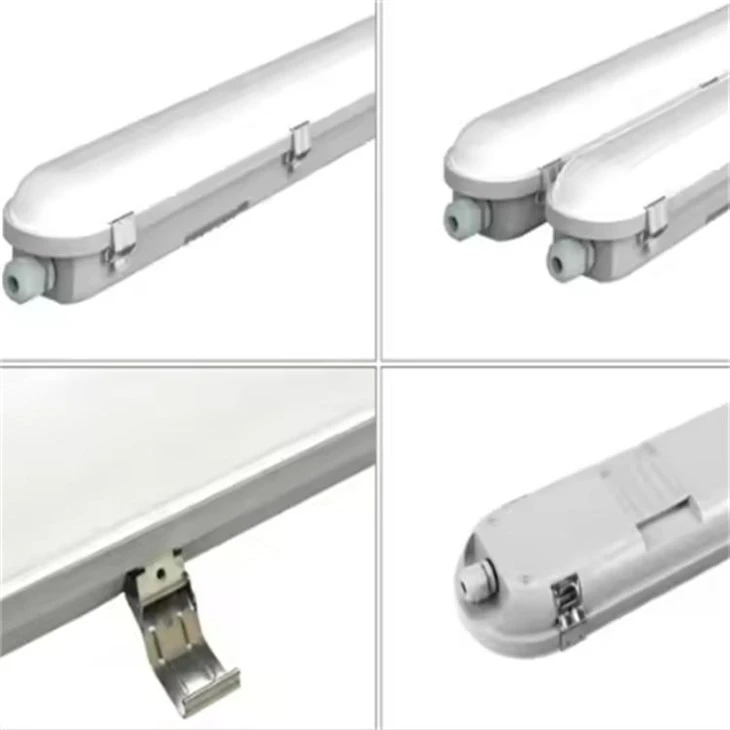

Khoom nta
1. Rugged, IP65 & IK08/10 Certified tiv thaiv
Tsis muaj kev txhawj xeeb ntxiv txog qhov hnyav hnyav ua rau koj lub teeb. Lub tri- pov thawj lub teeb no yog IP65 tag nrho- ntsuas, txhais tau tias nws yog plua plav kiag li- nruj thiab tiv thaiv lub dav hlau dej muaj zog- zoo tagnrho rau qhov chaw ntub dej xws li pas dej da dej, ntxuav tsheb, lossis chaw thau khoom sab nraum zoov. Nrog IK08 / 10 kev cuam tshuam tsis zoo, nws tuaj yeem ua rau muaj kev sib tsoo, kev vibrations, thiab cov khib nyiab tsis tawg lossis tsis ua haujlwm, ua rau nws zoo meej rau cov chaw tsis khoom thiab cov chaw tsheb loj. Lub npog polycarbonate muaj zog thiab lub tsev kaw ntom ntom kom tsis txhob ya raws, av, thiab kab tawm, ua kom muaj kev ua tau zoo ib yam txawm tias nyob rau hauv qhov nyuaj tshaj plaws.
2. High-Kev Ua Haujlwm, Zog- Teeb pom kev zoo
Tsim los ntawm hwm SMD2835 LED chips, lub teeb no xa cov teeb pom kev zoo, teeb pom kev zoo nrog qhov ua tau zoo 120lm / W - txiav koj cov nqi hluav taws xob ntau txog 60% piv rau cov raj fluorescent ib txwm muaj. Tsis muaj flicker, tsis glare, tsuas yog mos, txawm tias lub teeb uas yooj yim rau ntawm lub qhov muag, txawm tias lub sijhawm ua haujlwm ntev. Xaiv los ntawm plaub qhov hloov pauv loj / wattage xaiv kom haum koj qhov chaw zoo kawg nkaus:
600 hli / 20W:Lub teeb pom kev zoo, ci ntsa iab rau cov chaw ua haujlwm me me, chav cia khoom, lossis cov chaw nqaim
1200 hli / 40W:Qhov kev xaiv classic rau cov chaw ua haujlwm, chaw muag khoom, thiab cov chaw khaws khoom qub
1500 hli / 50W:Ntxiv -ntev kev pab them nqi rau cov chaw lag luam loj thiab cov kab ntau lawm
1800 hli / 50W / 75W:Siab - lub teeb pom kev zoo rau cov chaw qhib loj, gyms, thiab chaw faib khoom
Khoom nta
3. Durable, Tsawg-Kev Tsim Kho
Ua kom dhau 50,000+ teev (tshaj 10 xyoo ntawm kev siv txhua hnub), tri- pov thawj lub teeb no tshem tawm qhov teeb meem thiab cov nqi ntawm kev hloov lub teeb ntau zaus. Lub steel grey tais puag thiab corrosion-cov vaj tse tiv taus tuaj yeem tiv taus xeb, khawb, thiab hnav, thaum tus tsav tsheb dimmable kom ruaj khov, flicker- ua haujlwm pub dawb rau xyoo. Tsis zoo li pheej yig tri-cov pov thawj teeb uas daj lossis dim lub sijhawm, peb lub npog polycarbonate nyob ruaj khov thiab ci ntsa iab, tuav lub teeb pom kev siab tshaj plaws rau nws lub neej tag nrho.
4. Versatile, Flexible Design
Txawm hais tias koj yuav tsum tau nruab nws tawm ntawm lub qab nthab, tshem tawm ntawm phab ntsa, lossis txuas ntau lub teeb ua ke, qhov tri- pov thawj lub teeb tau npog koj. Qhov ceev - nruab lub davhlau ya nyob twg thiab IP65 tsis muaj dej tsis muaj dej ua rau kev xaim hluav taws xob, thaum cov mounting clips tso cai rau koj nruab nws hauv feeb- tsis muaj cov cuab yeej nyuaj lossis cov kws tshaj lij xav tau. Nws tseem muaj dimmable tag nrho (ntawm cov qauv xaiv), yog li koj tuaj yeem kho qhov ci kom haum rau koj qhov chaw, los ntawm lub zog tag nrho rau thaj chaw ua haujlwm kom tsis muaj teeb pom kev rau hmo ntuj - sijhawm nyab xeeb.
🛠️ Kev teeb tsa & Kev Siv Qhia: Yooj yim, nrawm, nyab xeeb
Kauj Ruam 1: Ua ntej-Kev Npaj Npaj
Ua ntej, xaiv koj qhov chaw mounting- lub teeb no ua haujlwm zoo ntawm lub qab nthab, phab ntsa, lossis hauv qab eaves, ob qho tib si sab hauv tsev thiab sab nraum zoov. Sau cov mounting clips, ntsia hlau, thiab cov ntsaws dej tsis sib haum, thiab tua lub hwj chim rau lub voj voog uas koj yuav siv. Lub teeb no yog sib xws nrog tus qauv 100-240V AC circuits, yog li tsis muaj kev cuam tshuam tshwj xeeb.
Kauj Ruam 2: Mount Lub Teeb
Kos cov hauj lwm rau cov mounting clips raws koj nto, ces ntsia hlau lawv ruaj ntseg nyob rau hauv qhov chaw. Rau 600mm lub teeb, siv ob clips; rau cov qauv ntev (1200-1800mm), siv peb mus rau plaub clips rau kev ruaj ntseg ntxiv.
Xaub lub tri- pov thawj lub teeb rau hauv cov clips- lawv tau tsim los tuav nws ruaj khov yam tsis muaj wobbling, txawm nyob rau hauv siab - ib puag ncig kev co.
Kauj Ruam 3: Txuas nws
Txuas lub fais fab cable nrog rau IP65 tsis muaj dej ntsaws rau ntawm qhov kawg ntawm lub teeb. Lub plug tsim kom nruj, weatherproof seal kom tsis txhob ya raws.
Yog tias koj tab tom sib txuas ntau lub teeb ua ke, siv lub nrawm- nruab lub davhlau ya nyob twg los txuas rau lawv- qhov no tso cai rau koj tsim teeb pom kev txuas ntxiv, seamless yam tsis muaj teeb meem, raug xaim.
Txuas lub ntsiab fais fab cable rau koj cov khoom siv hluav taws xob, ua raws cov lej hluav taws xob hauv zos. Lub teeb tus tsav tsheb sab hauv ua haujlwm tswj qhov hluav taws xob, yog li koj tsis tas yuav muaj lub ballast sab nraud.
Kauj Ruam 4: Kuaj & Kho
Tig lub hwj chim rov qab rau -koj lub teeb yuav qhib tam sim ntawd yam tsis muaj qhov sov sov - lub sijhawm nce. Xyuas kom nws zaum ruaj ntseg thiab lub teeb txawm thiab flicker -dawb. Yog tias koj xav tau kho lub kaum sab xis lossis txoj hauj lwm, tsuas yog loosen cov clips thiab reposition lub teeb - tsis tas yuav tsum tau disassembly.
Pro Cov Lus Qhia rau Lub Neej Ntev
Txhim kho lub teeb rau hauv qhov dej zoo- qhov cua qhov chaw kom cov khoom sab hauv kom txias thiab ua kom nws lub neej ntev.
So lub polycarbonate npog nrog ib daim ntaub mos, qhuav txhua ob peb lub hlis kom tshem tawm cov plua plav thiab khaws lub teeb tawm ntawm qhov siab tshaj plaws.
Tsis txhob tso lub teeb rau qhov kub thiab txias (hauv qab -20℃lossis siab dua 45 degree) tshwj tsis yog tias koj tau xaiv peb qhov dav -tus qauv kub, tsim rau qhov chaw txias lossis qhov chaw kub kub.
Peb lub tuam txhab txaus siab rau nws tus kheej ntawm nws tus kheej lub Hoobkas, lav kev tswj kom tiav cov txheej txheem ntau lawm thiab qhov zoo ntawm peb cov khoom. Peb tsis yog tus neeg sawv cev nkaus xwb; peb yog cov chaw tsim khoom cog lus los muab peb cov neeg siv khoom sib tw tshaj plaws. Peb caw cov neeg siv khoom los ntsuas peb cov qauv ua ntej, raws li peb tau lees paub tias qhov zoo thiab tus nqi ntawm peb cov khoom yog tus kheej - pov thawj. Peb kev mob siab rau kev ua tau zoo thiab cov neeg siv khoom txaus siab yuam kom peb ua raws li peb qhov zoo tshaj plaws thiab muab cov khoom zoo tshaj plaws.
